Cable drum trailer

AP Energy Kabeltrommelanhänger U-Typ 10 Tonnen

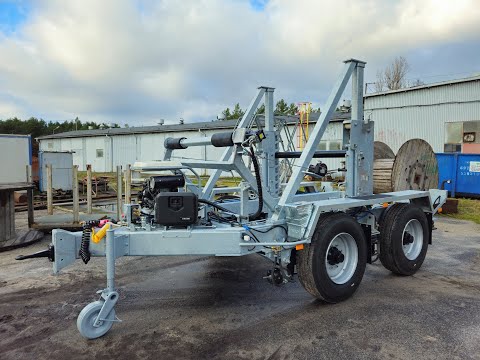

U-Type Cable Drum Trailer, 10 Tons, F10.140.2M – Hydraulic Cable Trailer / Cable Drum Cart for Energy Suppliers and Grid Construction

For sale is a professional U-type cable drum trailer, model F10.140.2M, with hydraulic drive for transporting, lifting, and controlled unwinding of heavy cable drums. This model is equipped with a braking system without ABS and is designed for towing at speeds up to 30 km/h.

The cable trailer is designed for demanding work in grid construction, cable laying, underground cable installation, power grid expansion, overhead line construction, civil engineering, and in the energy supply sector. It is particularly suitable for energy suppliers, municipal utilities, grid construction companies, cable laying companies, and industrial and infrastructure projects.

The robust U-shaped construction allows the cable drum to be easily accommodated and hydraulically lifted. The hydraulic drive with a Honda engine enables safe lifting and control of drum rotation on the construction site. The fully hot-dip galvanized steel construction ensures high corrosion resistance and a long service life in professional use.

Technical data:

* Model: F10.140.2M
* Machine type: U-type cable drum trailer / cable trailer / cable drum cart / cable transport trailer
* Permissible total weight: 13,500 kg
* Load capacity: 10,300 kg
* Max. drum width: 1,600 mm
* Max. drum diameter: 3,800 mm
* Weight: approx. 3,500 kg
* Dimensions: approx. 580 × 255 × 296 cm
* Hydraulic lifting of the cable drum
* Hydraulic drive / control of drum rotation
* Honda engine with electric ignition
* Fully hot-dip galvanized steel frame
* Air brake without ABS – model for up to 30 km/h
* LED lighting 12 V / 24 V
* DIN 40 mm towing hitch
* Suspension on pneumatic cushions
* Suspension on 4 Halbach axles
* Front and rear supports
* Hydraulic control in a protected box
* Rear beam for loading at an angle

Equipment and advantages:

* Robust U-frame construction for heavy cable drums
* Suitable for cable drums up to approx. 10 tons
* Hydraulic lifting and controlled drum rotation
Dcodpfxezdf R Uo Afqop
* Hot-dip galvanized design for construction sites, grid construction, and the energy sector
* Professional design for heavy cable laying
* Stable construction for daily use
* Easy loading of the cable drum thanks to the U-type design

We produce cable drum trailers in all common weight classes and equipment variants – from compact 3.5-ton cable trailers to heavy cable drum trailers for drums over 20 tons. Depending on customer requirements, various axles, braking systems, drawbars, hydraulic systems, remote controls, drum drives, road approvals, and special equipment are available.

Application areas:

* Energy supply and municipal utilities
* Grid construction and power grid expansion
* Cable laying and underground cable installation
* Medium voltage and high voltage
* Overhead line construction and line construction
* Civil engineering, infrastructure, and industry

The F10.140.2M is a powerful solution for companies looking for a heavy hydraulic cable drum trailer / cable trailer / cable transport trailer for professional cable laying.

Inspection, technical consultation, special equipment, and individual offers are available upon request.

Intra-community delivery net without VAT is possible with a valid VAT ID.
